H1 Black – 5th Anniversary Edition

H1 Black – 5th Anniversary Edition

Shipping and Customs included in price!

BDH, the Simulation Mechanics- are delighted to bring you their latest product the

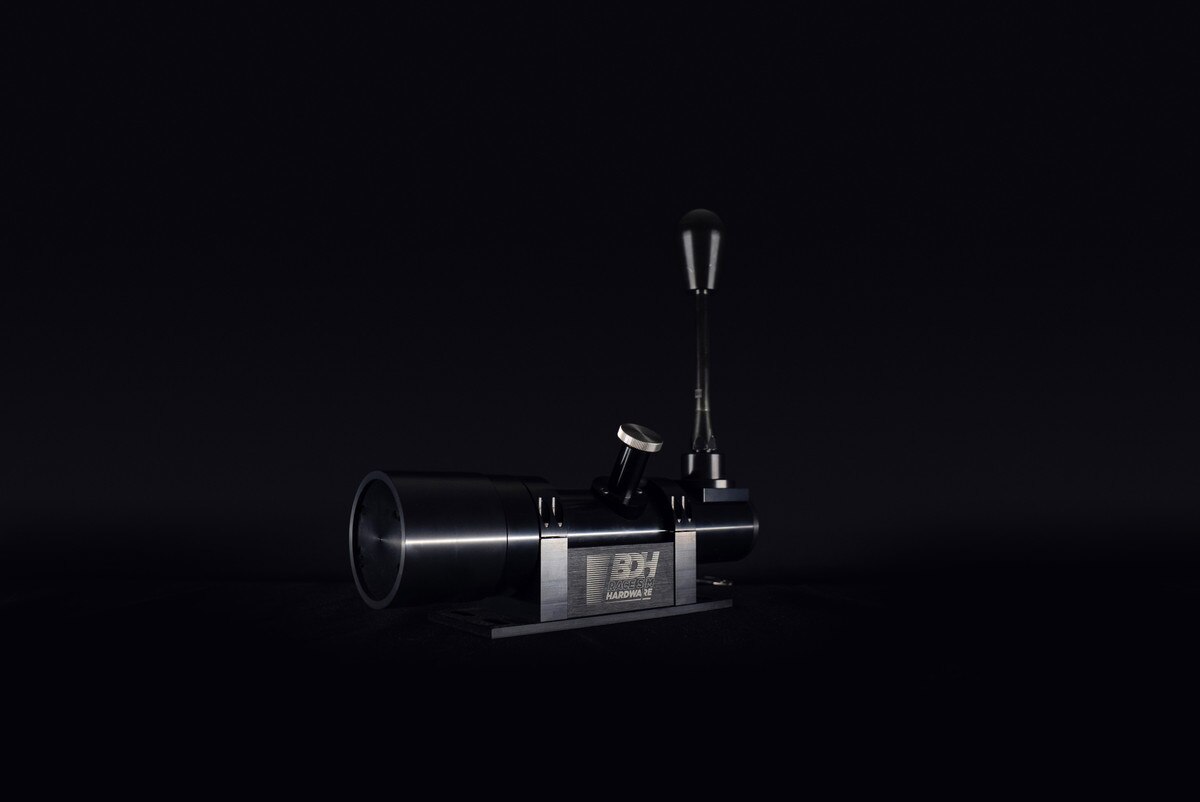

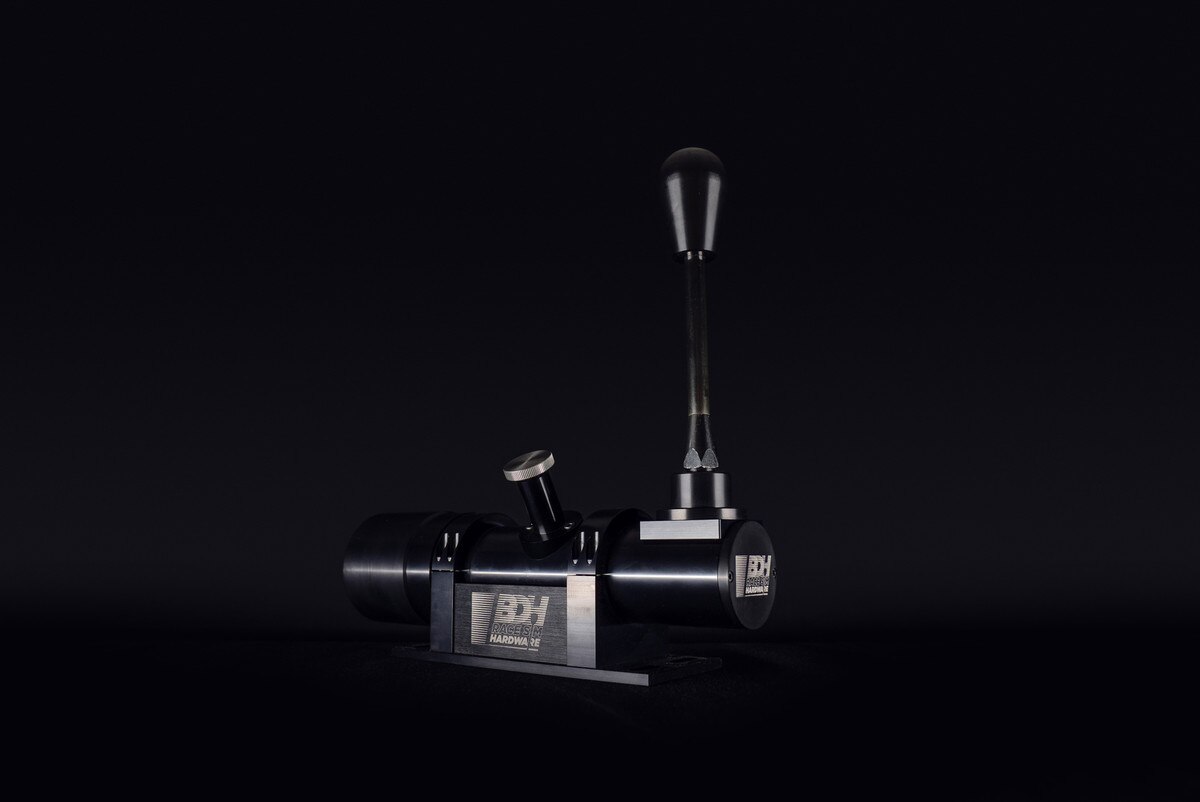

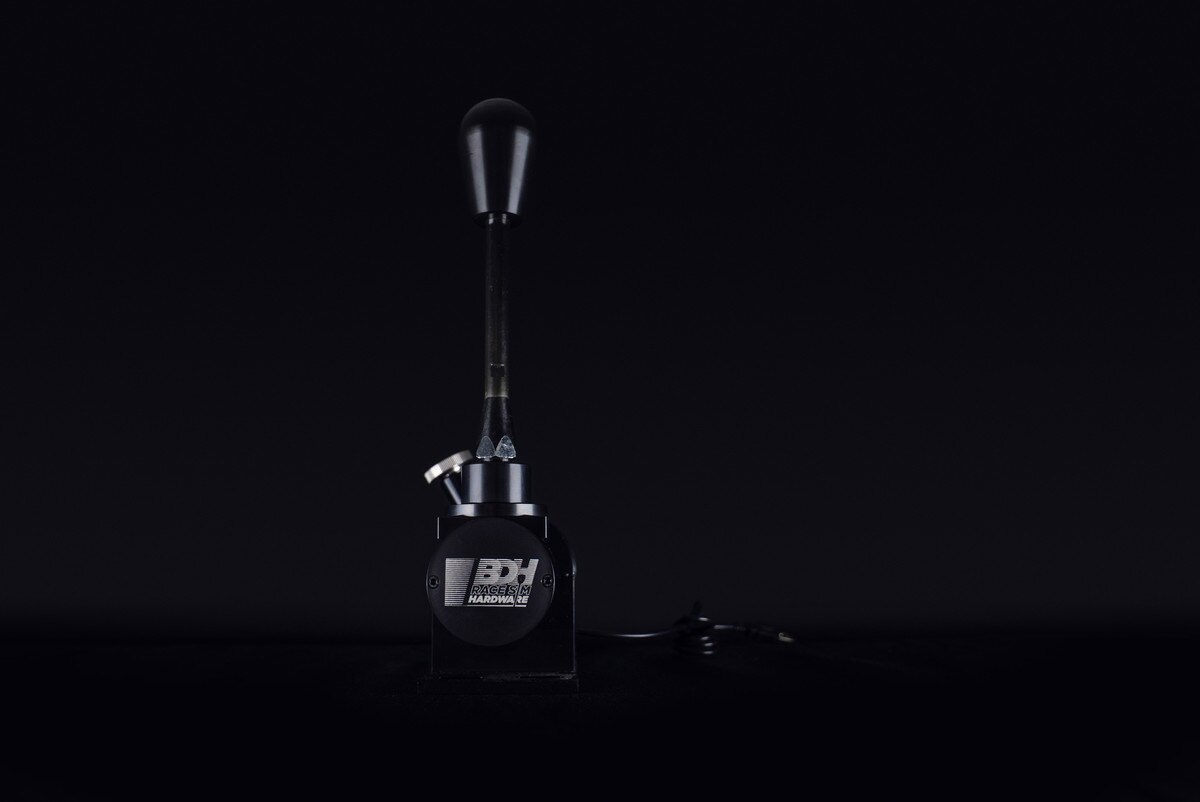

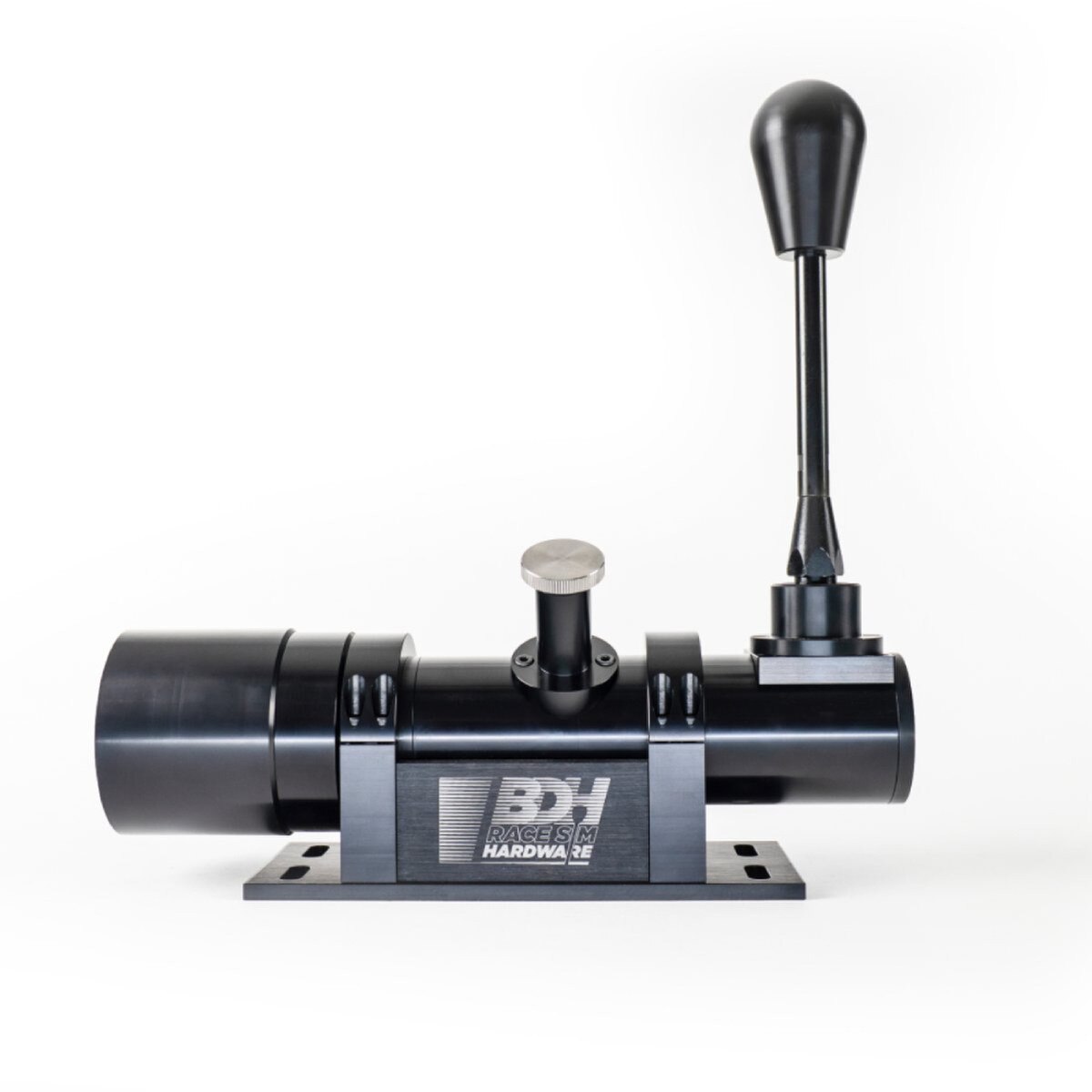

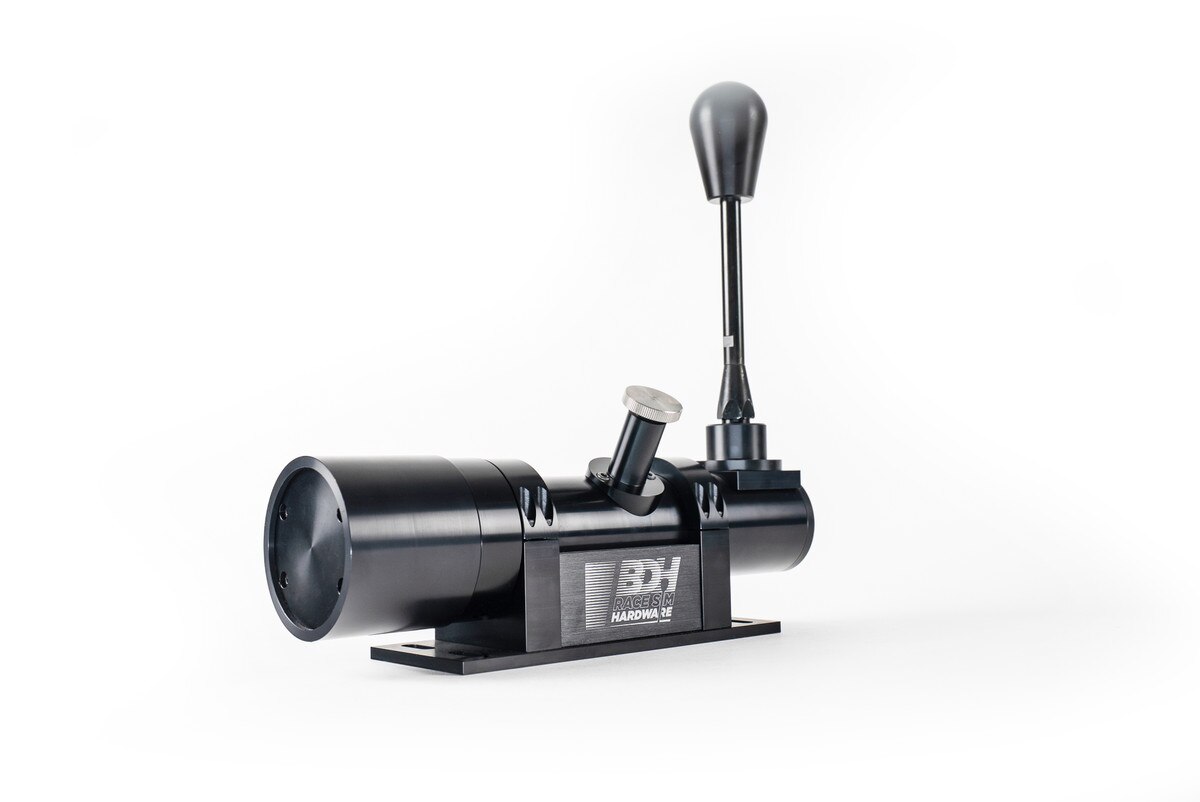

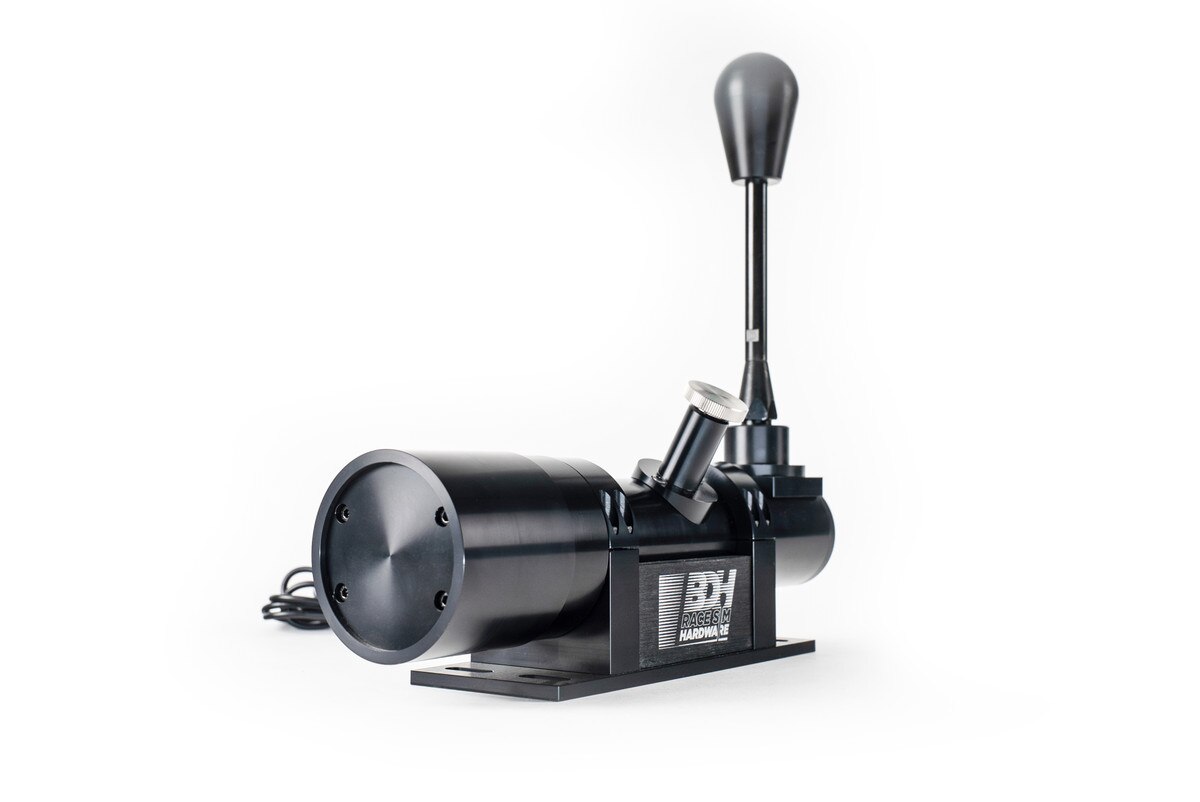

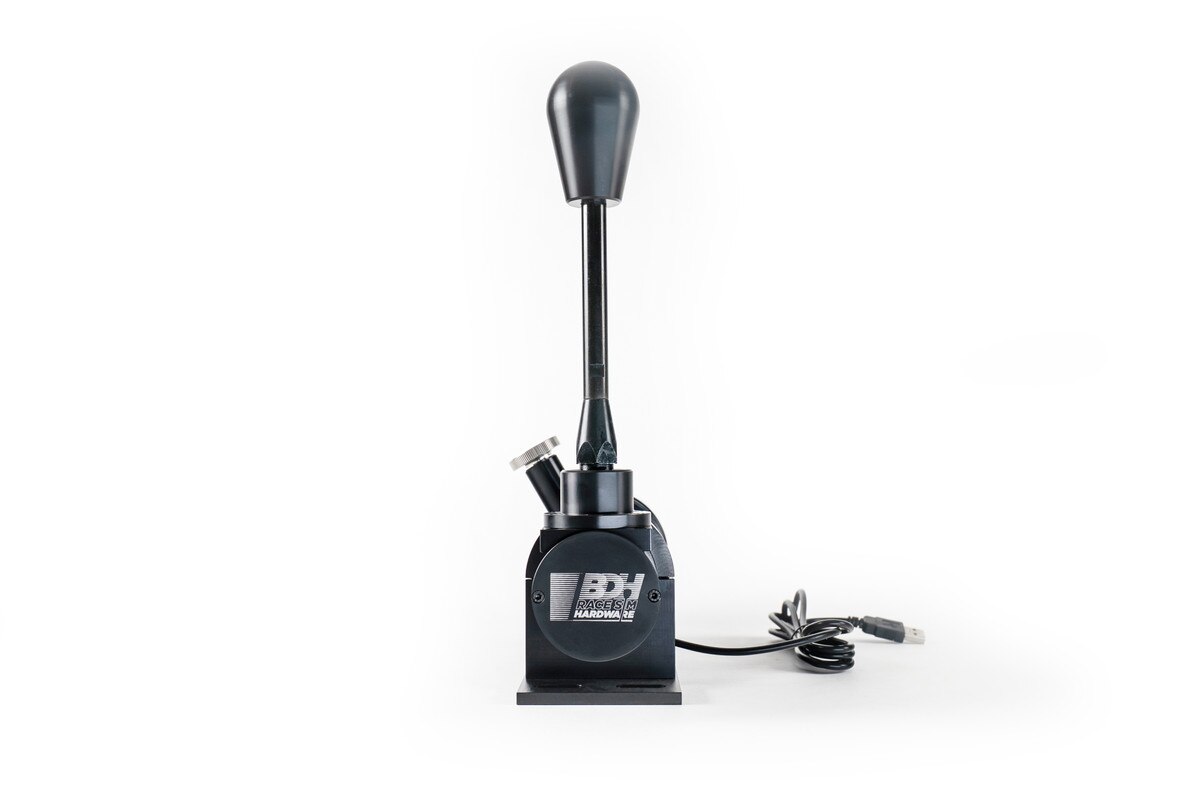

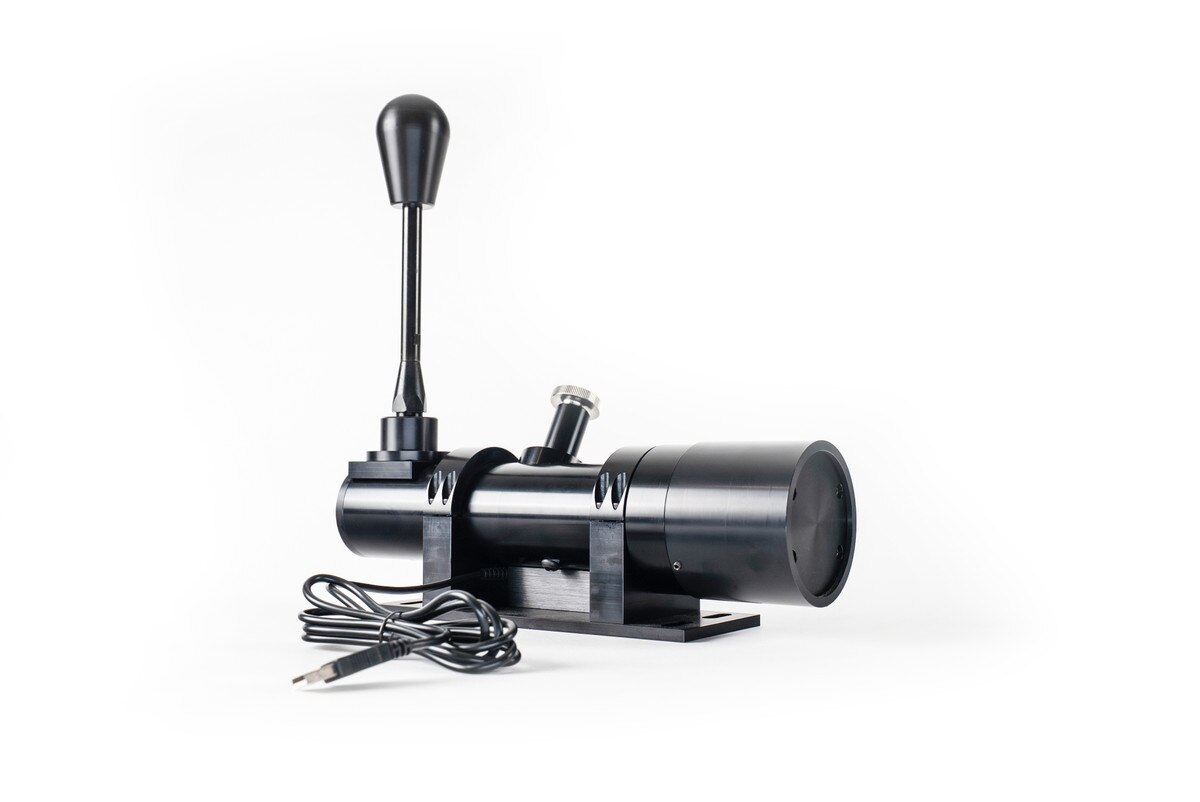

H1 Black – 5th Anniversary Edition

First launched in 2020, the BDH H1 was hailed as a “Work of Art” by sim racing enthusiasts and professionals alike. As the first professional-grade H-pattern SIM shifter developed by BDH, it quickly earned a devoted following and the affectionate nickname “The Bazooka.”

Inspired by the gear shifting mechanism of the iconic Ford Escort MKII rally car, the H1 was engineered for realism and personalisation. Its unique “Tensioning Technology” allowed users to fine-tune resistance and feedback, setting a new benchmark for authenticity. With a robust construction and a weight of 3.5kg, it was built to handle the rigours of race simulation at the highest level — a true reflection of BDH’s motorsport engineering pedigree.

While the launch of the H1SQ led to the original H1 being retired, overwhelming demand from the community has driven its triumphant return. To mark our 5th anniversary, we’re proud to reintroduce the H1 — reimagined, refined, and more accessible than ever:

What’s New in the H1 5th Anniversary Edition?

• New Price: Previously over $1100 now at $685
• New Finish: Sleek black anodized chassis
• New Technology: Upgraded to hall effect sensors for improved reliability and lifespan
• New Durability:All-steel gear teeth for enhanced feel and extended performance
• New Options: A variety of shaft lengths to suit your driving style

Key Specifications

• Dimensions: 300mm x 300mm x 80mm
• Weight: 3.5kg
• Modes: H-Pattern

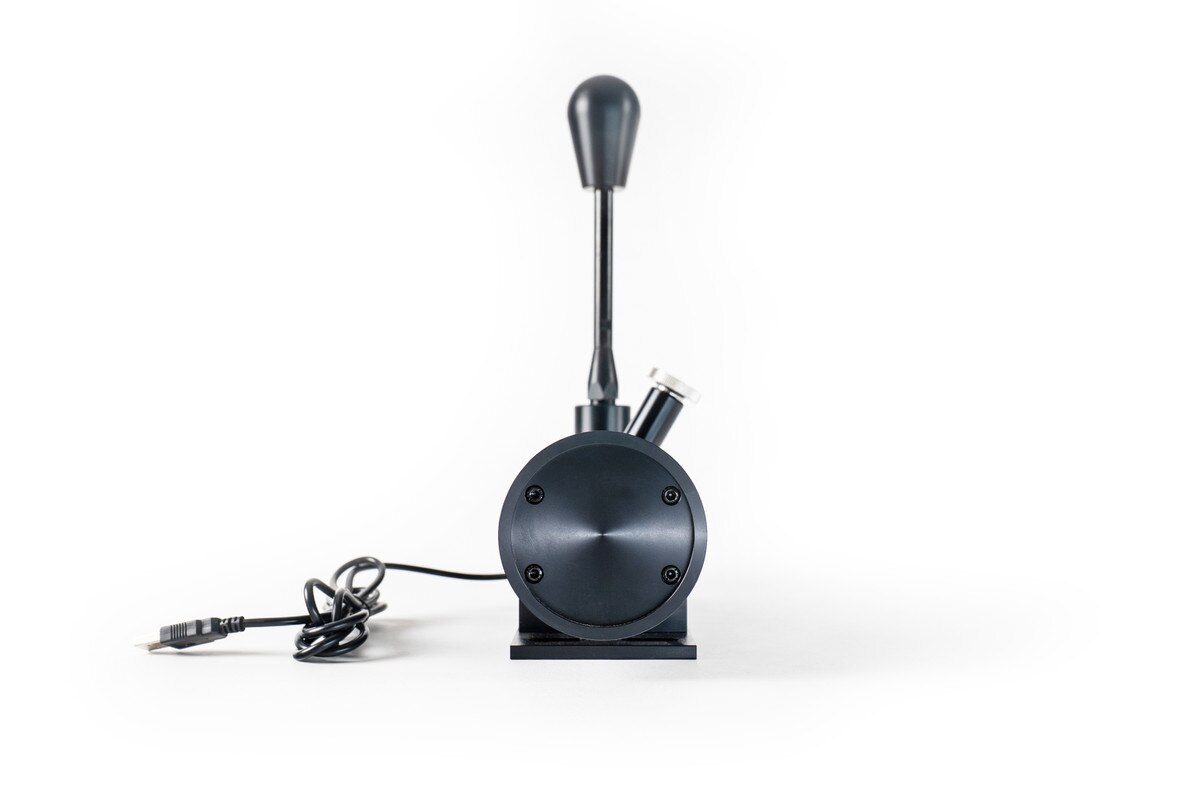

• Connectivity: USB-C (2m cable included)
• Power Supply: USB powered (5V DC)

Materials & Construction

• Chassis: Precision-machined HE260 aerospace-grade aluminium
• Finish: Electrochemically treated with black oxide coating for enhanced durability
• Design Details:

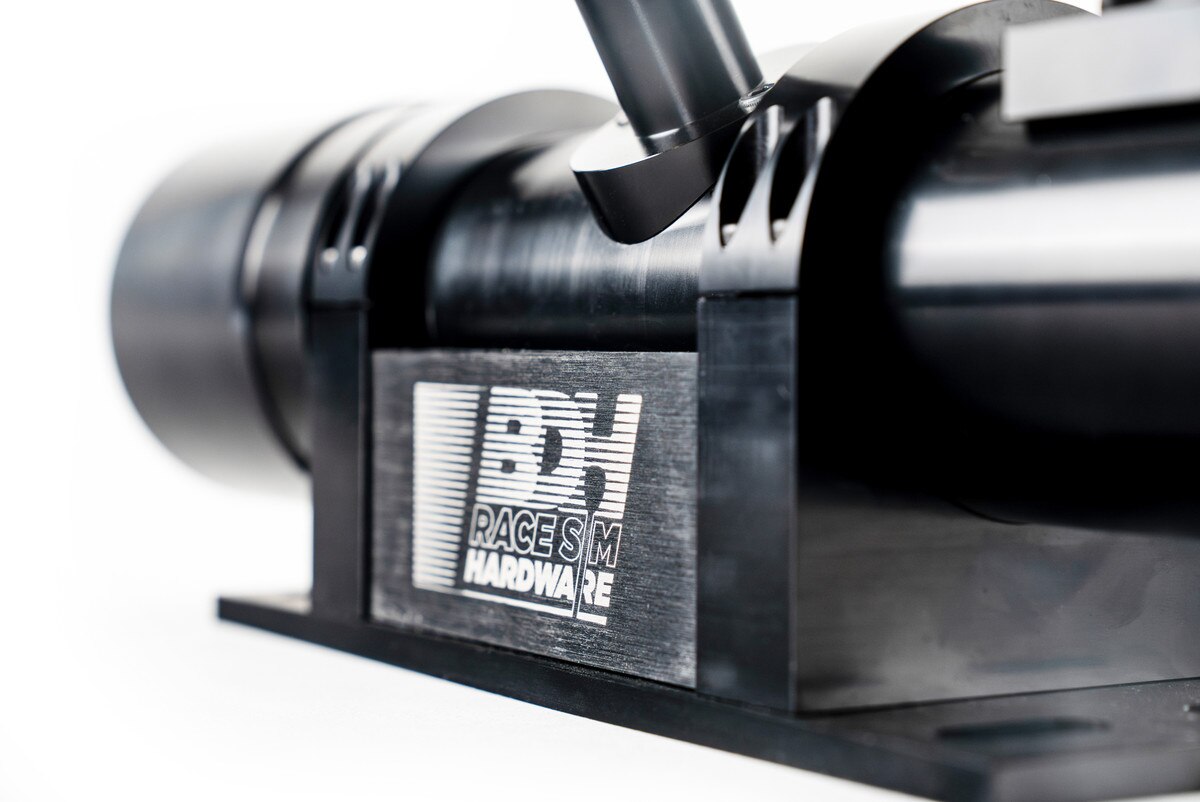

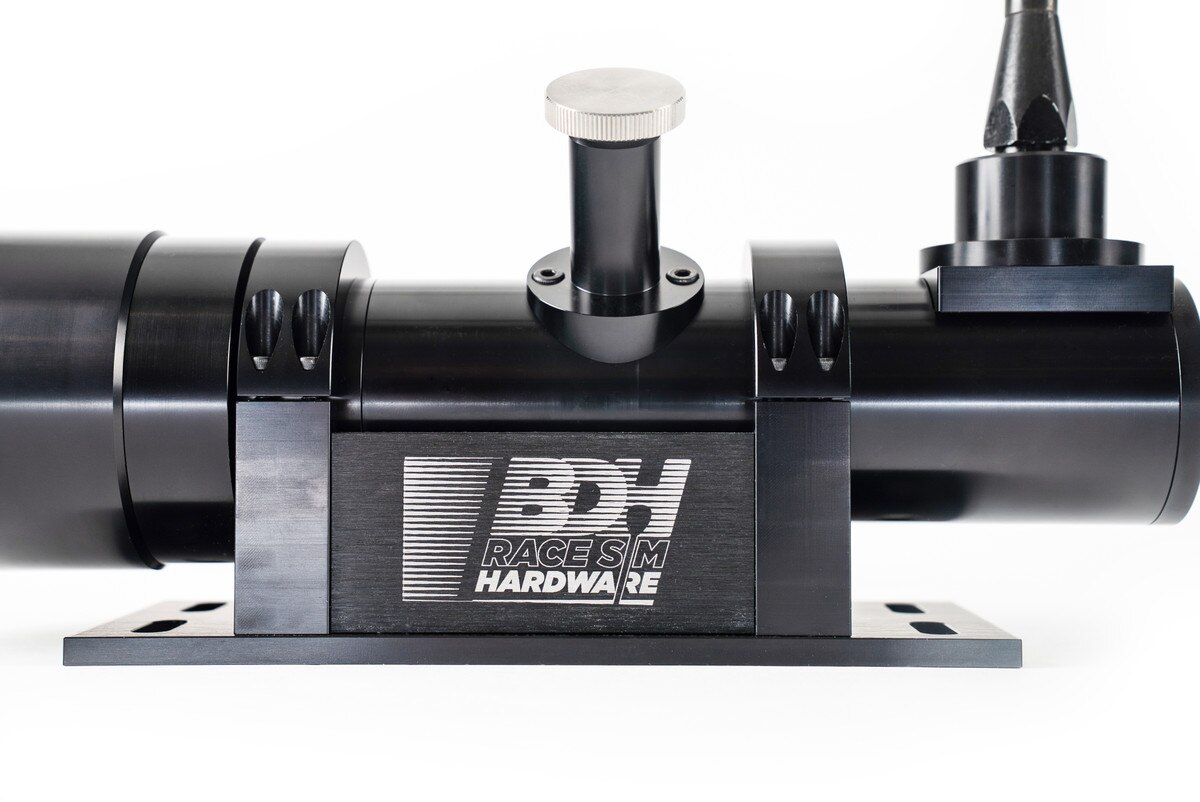

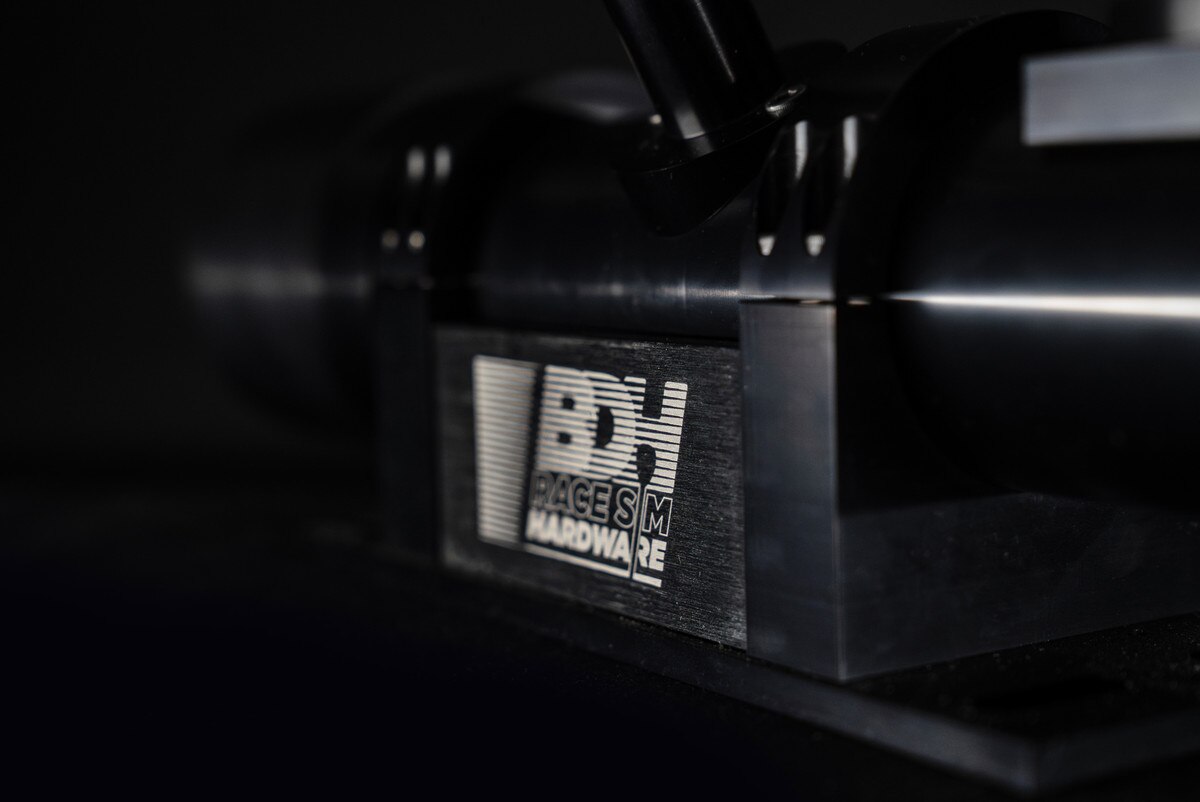

  • Embossed BDH logo on side tray

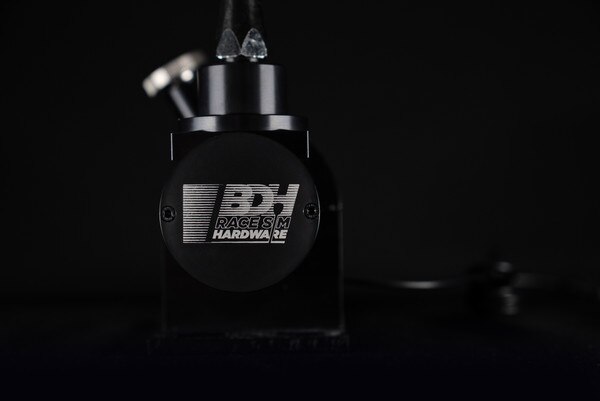

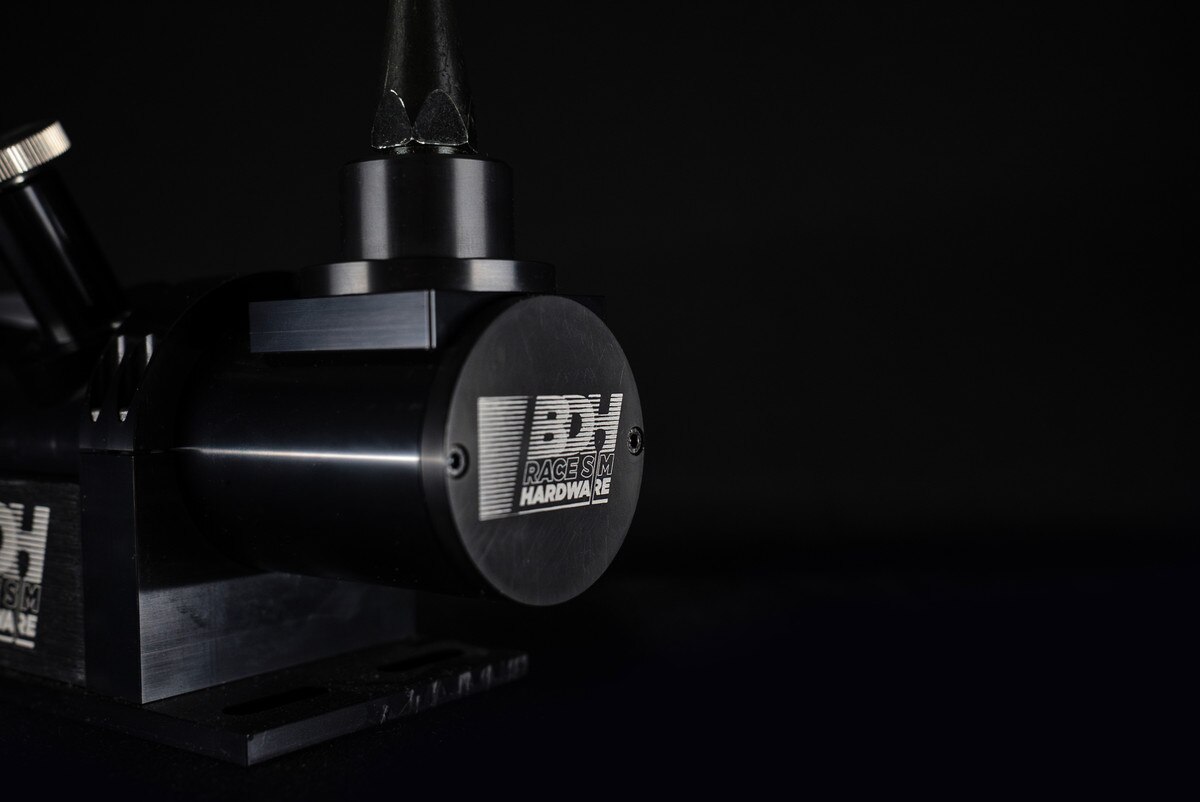

  • 5th Anniversary insignia on front cap
• Components:
  • High-tensile steel parts for extreme durability

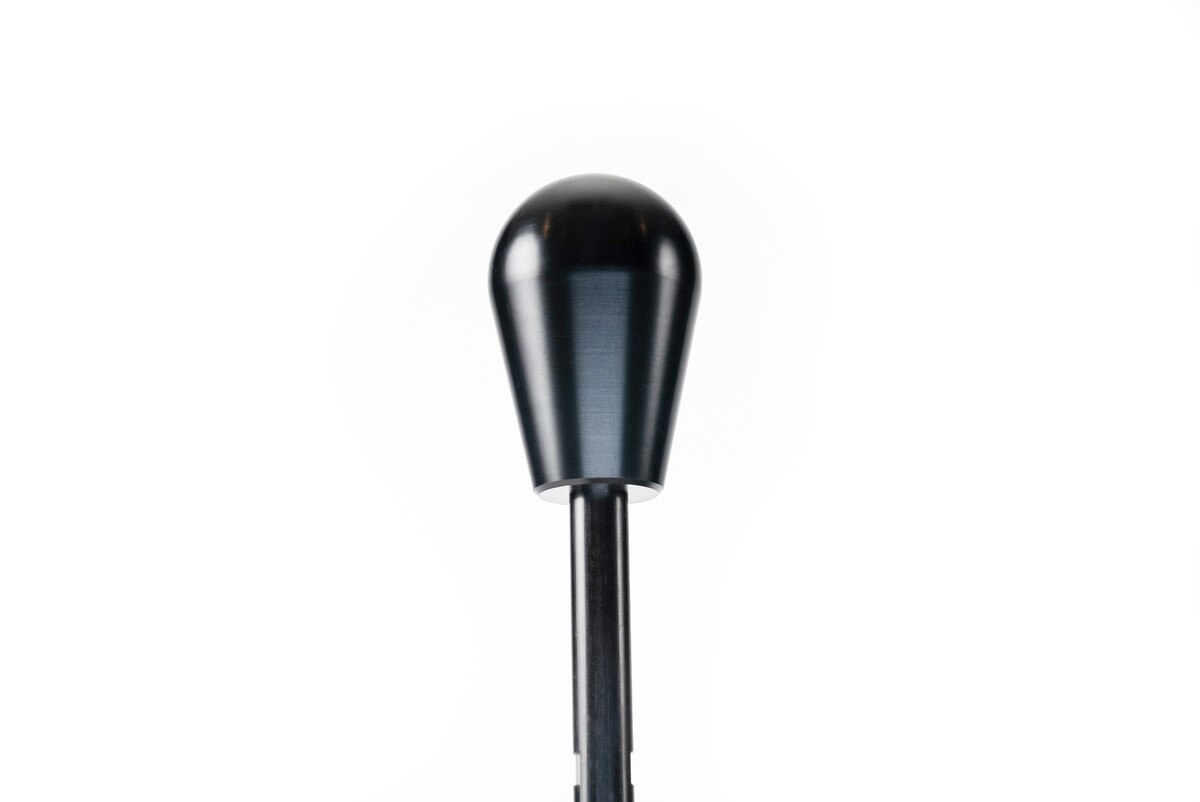

  • WRC-spec nylon Quaife-style gear knob with premium textured grip
  • Self-lubricating bronze bushings for smooth operation
  • High-quality die-square section springs for consistent resistance

H-Pattern Mechanism

• Iconic Bazooka-format H-pattern with BDH proprietary design
• Crafted from high-quality alloy steel
• 8-gear gate configuration with fully customisable layout

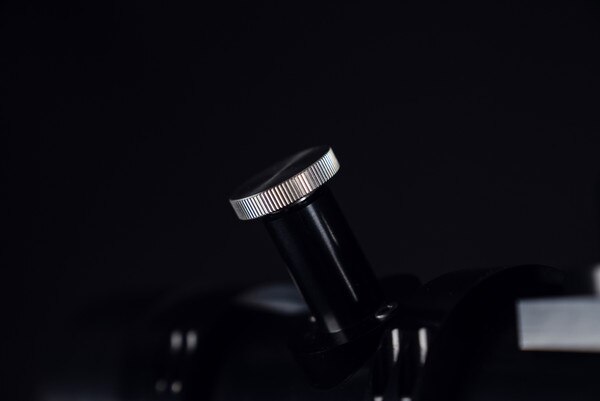

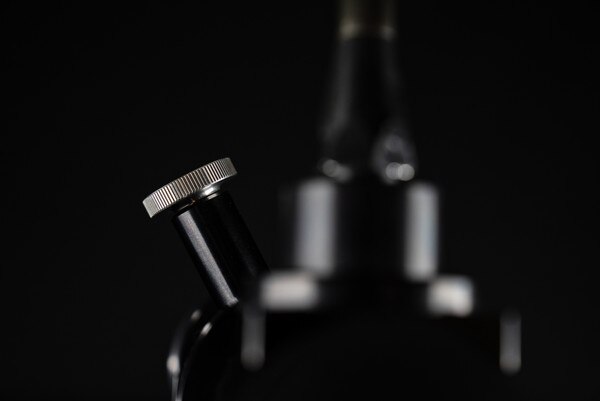

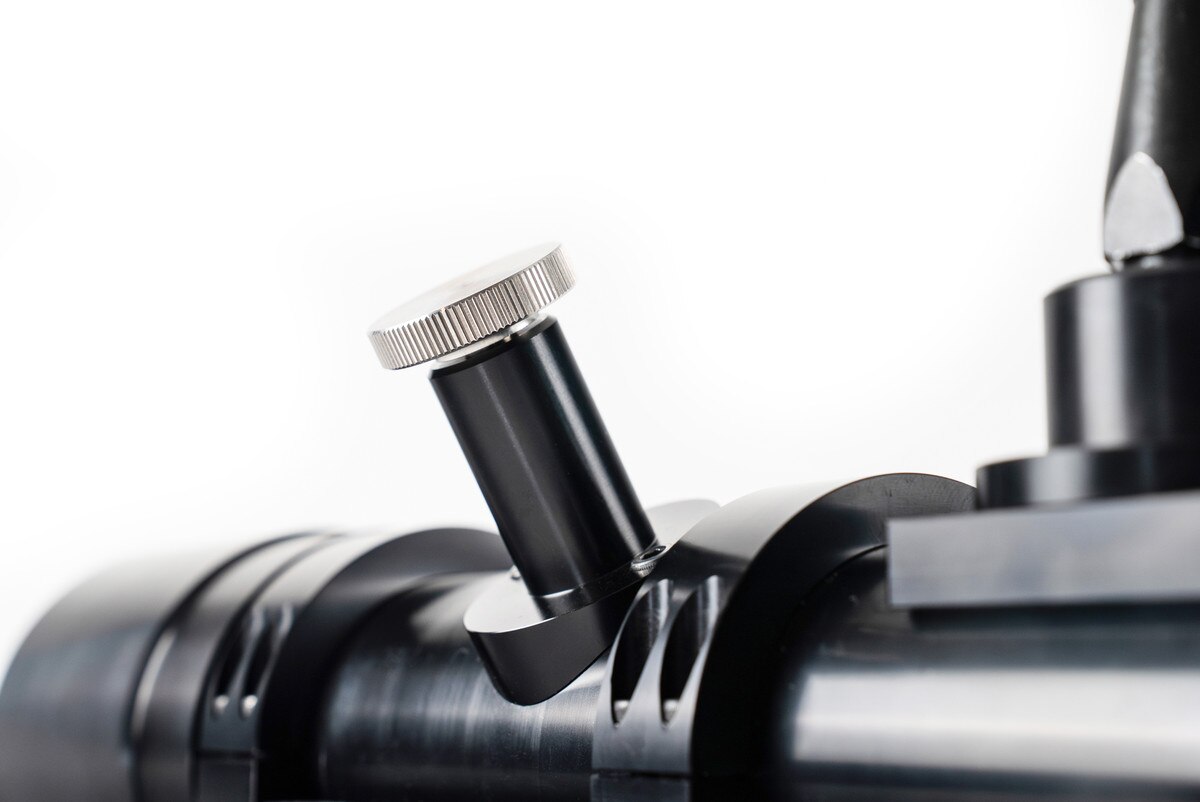

• Adjustable detent gauge with dual-locking preset
• Centralising CAM mechanism for precision gear selection
• High transmission efficiency with low noise and long service life

Electronics & Connectivity

• Contactless BDH hall sensor technology
• Zero-latency USB interface
• Plug-and-play with all major sim racing titles
• No external power required
• Built-in processor with custom BDH firmware
• Protected circuitry for enhanced long-term reliability

Mounting & Customisation

• 360-degree mounting for perfect placement
• Standard M8 x 1.25 mounting points with T-nut compatibility
• Fully compatible with all major sim racing rigs
• Optional sandwich adapter plate available
• Supports third-party gear knobs (M10 x 1.5 thread)
• Multiple shaft height and length adjustment options available

Precision Engineering Highlights

• Motorsport-grade PTFE-lined spherical bearings
• Radiused 303 stainless steel wear-resistant gate pegs
• Equal-resistance spinning ball detent for gear gate selector
• Centralising anchor with precision engineering
• EN8 high-carbon steel shear parts, rated to 40 tonnes
• Graphite-enhanced self-lubricating bronze oil light guides

Weights & Dimensions

• Height: 300mm
• Length: 300mm
• Width: 80mm
• Weight: 3.5kg
• Shipping Weight: 4kg

Note:

Fitting Kit and Gear Stick Length Kit available separately.
