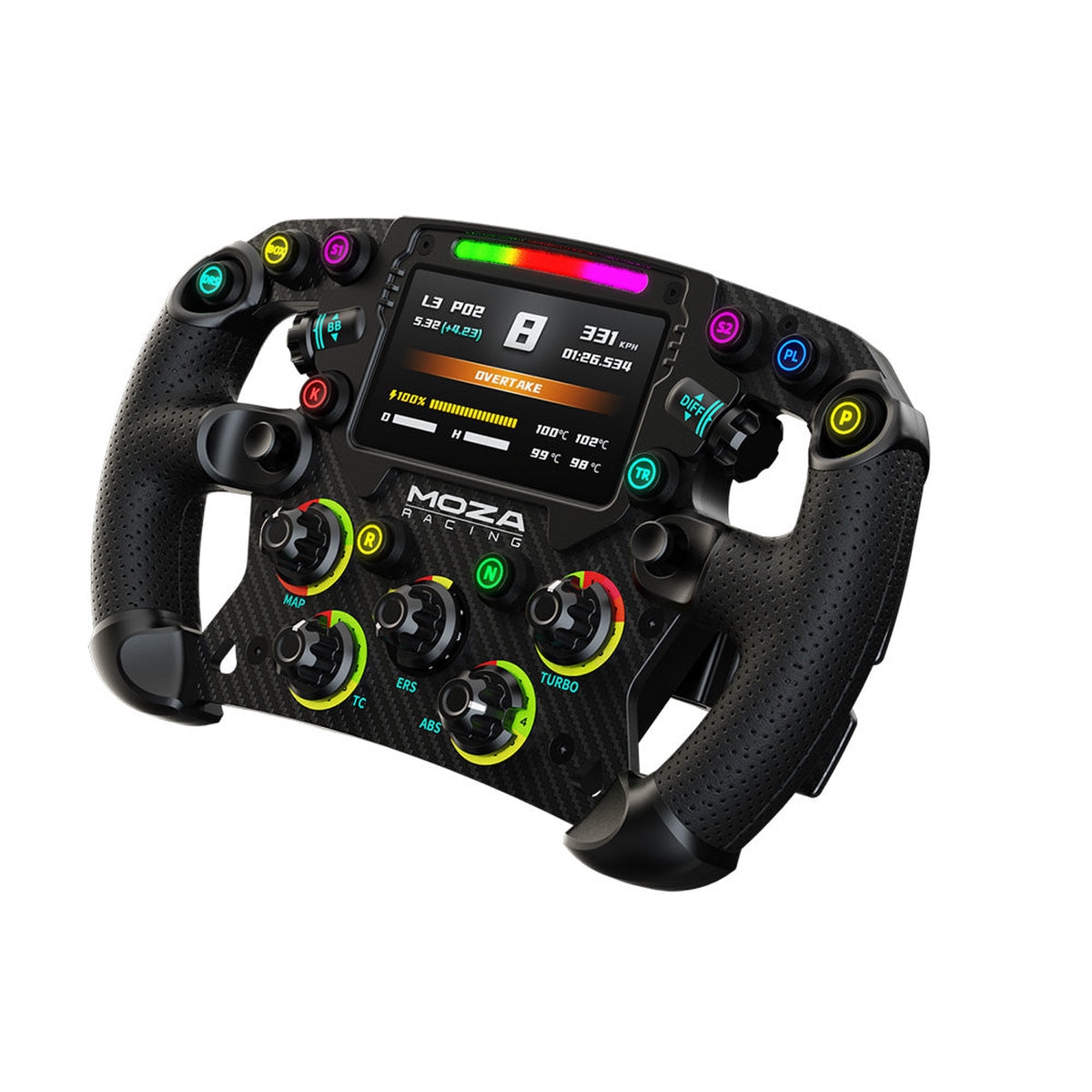

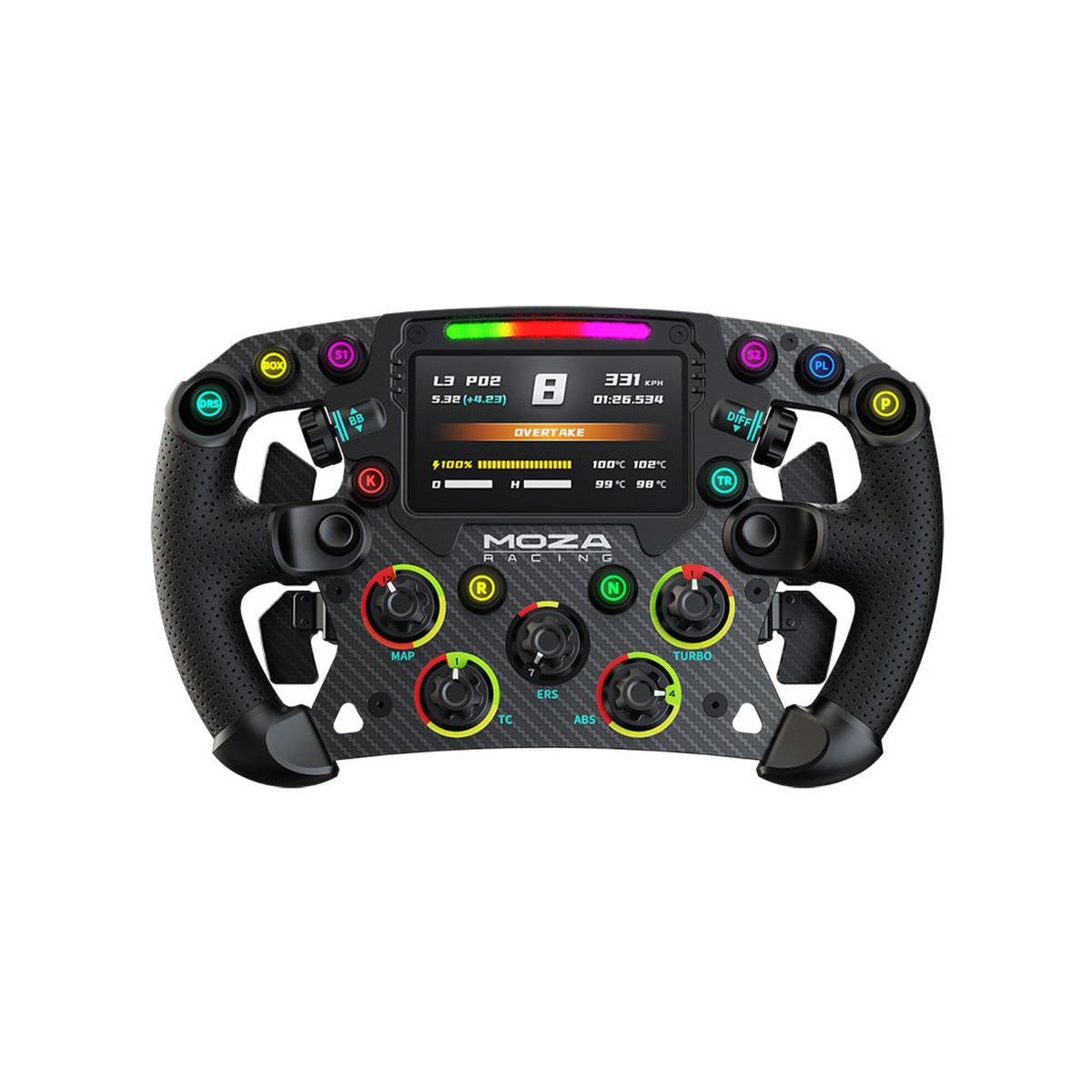

The MOZA FSR wheel is a formula style racing wheel. A 280 mm sim wheel designed for maximum immersion and ultimate racing experience.
4.3-inch Built-in Digital Dash
A 4.3-inch built-in digital dash with 800*480 resolution display all the essential info racers need to know in the heat of competition.
15 Dash UI Interfaces
Inspired by real racing cars, our redesigned interface adopts a new, flat style, with 15 different configurations possible, so drivers can get the essential information when they need it most: speed, RPM, gears, tire temperatures, relative times, current or fastest lap times, fuel, ERS levels, vehicle status, damage, DRS and much more.
taste compared with rubber.
Toray Carbon Fiber Frame and Paddles
Featuring a sturdy frame made of 5mm high-strength carbon fiber and 3mm magnetic shifter paddles, enjoy a weighty feel and trusted reliability.
Aviation-grade Aluminum Housing
The housing is CNC machined with aviation-grade aluminum. The surface is anodized, giving superior texture and rigidity.
Carbon Fiber Magnetic
Dual Clutch Paddles

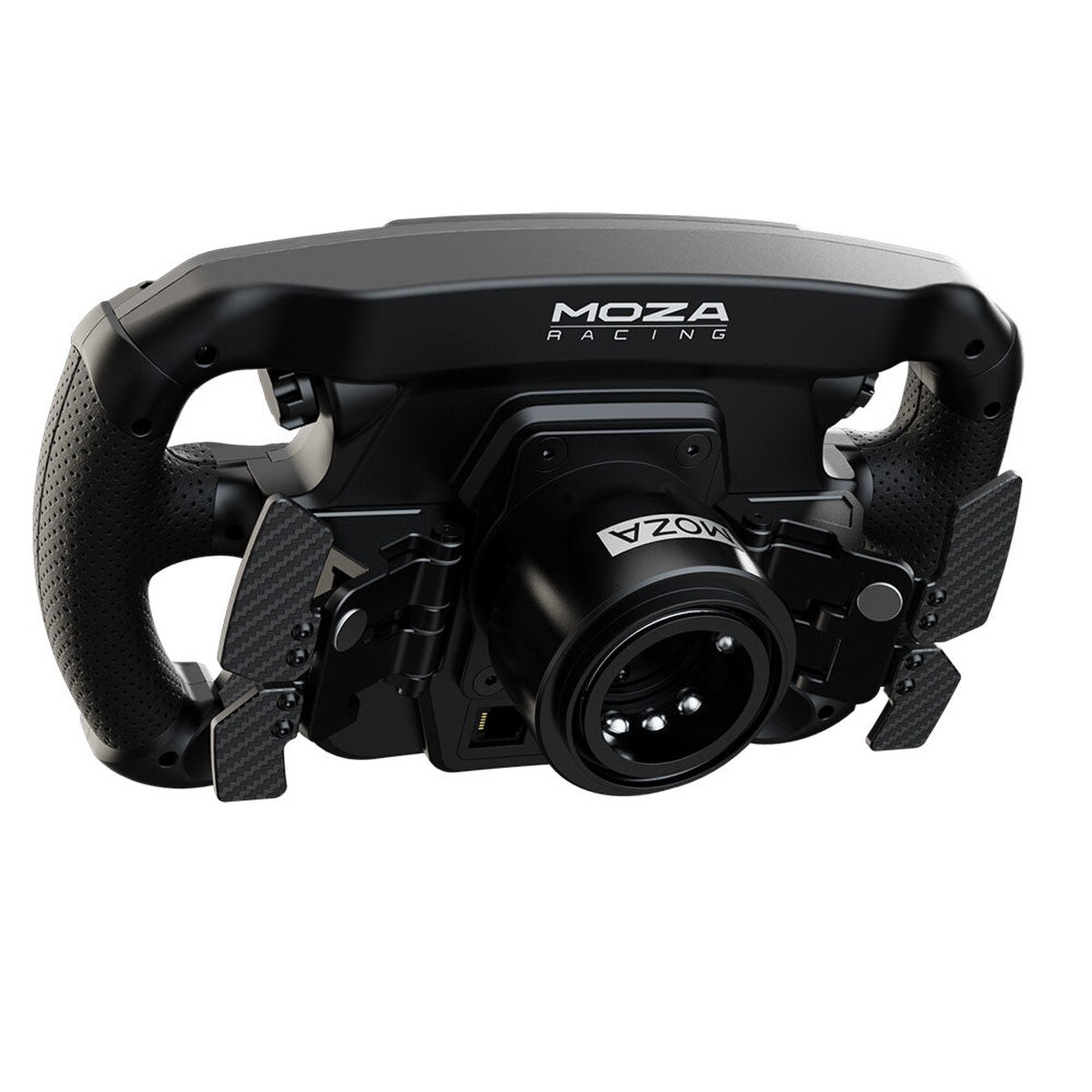

The FSR wheel features carbon fiber magnetic shifter and dual clutch paddles. In addition, the clutch paddles can be set as dual-clutch mode, single-clutch mode, and programmable switches.
Get perfect visualized dual clutch starting technology in professional racing games like iRacing or F1. The paddle induction adopts non-contact Hall electromagnetic induction technology, which is highly stable, meaning no more miss-shifts or damage to your vehicle.
Customized Quick Release
MOZA's quick release system ensures a seamless wheel transition in seconds. Enjoy a stable, solid connection that works across the whole MOZA Racing ecosystem.
Direct Connection to PC via USB
The MOZA FSR formula wheel is compatible with wheelbases of other brands by connecting to the PC directly via the USB hub other than working perfectly with all wheelbases in the MOZA Racing ecosystem.
Customizable RGB RPM and Shift Indicator
With ten high-brightness RGB LEDs, enjoy the ability to customize your RPM or shift indicators with seven different color choices, allowing for a unique touch to your racing setup.
Optimized, Ergonomical Design
A comfortable but firm grip gives the FSR wheel a true-to-life racing feel. Even in the face of MOZA's R21 torque, a driver has quick access to all adjustments they need to make in battle, with carefully placed joysticks, buttons and switches.
Specs
Size
280mm Standard Racing Wheel (13 inches)
Digital Dash Size
4.3 Inches
Digital Dash Resolution
800*480
Grip Material
Perforated Leather
Frame and Front Plate Material
5mm-thick Carbon Fiber
Shifter Paddles Material
3 mm-thick Carbon Fiber
Housing Material
Aviation-grade Aluminum
Magnetic Shifter Paddles
2
Dual Clutch Paddles
2
Luminous Mechanical Keyboard Keycaps
10
Thumb Knobs (pressable)
2
Band Knobs
5
LED Lamp Beads
10
LED Colors
7 Customizable Colors
Intelligent Telemetry
Supported
Light Adjustment
Supported
Releasing Method
Quick Release
Transmission Mode
Wireless / USB
Paddle Sensor
Non-contact Photoelectric Sensor
Dual Clutch Paddle Mode
Synthesis Axis/Independent Axis/button
