P1 DDX Prime Motion
Details
Details
LAUNCH SPECIAL
With Flight Add-On Microsoft Flight is installed and configured. DCS can be installed as well if desired.
• Monitors are not installed on the stand as they need protected within boxes.
Flight Controls can easily be added to the rig.
WHITE GLOVE HOME INSTALL INCLUDED IN PRICE
THE FIRST SIMULATOR TO RECREATE THE ADRENALINE RUSH OF REAL DRIVING
"Fueled by our passion for performance, we engineered a fully integrated racing simulator with unmatched realism and accuracy. Designed to disrupt both the consumer and professional market."
- Driven DynamiX
DDX PRIME
AEROSURGE WIND SIMULATOR
Real time, full customizable, and significantly stronger than anything on the market, the AeroSurge Wind Kit delivers incredible life like wind. Feel the speed on your face as your putting down lap after lap for hours. 100% output: 24 mph, 78 dBA 50% output: 12 mph, 64 dBA Acceleration: 0 - 100% output in 400ms *as measured at typical driver seating distance
DDX PRIME
G-ACTIVE SEATING
Like nothing else, this built into seat belt tensioner mimics G-Forces you wont believe. With up to 180 lbs per foot of force, you feel braking, cornering, shifting and more like never before. Max sustained braking force: 800N (180 lbf, ~2.5G) Max sustained cornering force: 400N (90 lbf)
PODIUM 1
PREMIUM COMPONENTS
Outfitted with some of the best items on the market, the DDX Prime comes full loaded with top brand components to ensure the best driving experience available: - Simucube Active Pedals - Asetek Invicta 27nm Direct Drive - Asetek Invicta Steering Wheel - Cube Controls GT Pro V2 - P1 Edition BDH H1SQ Shifter - Heusinkveld Hand Brake - 5.1 Audio System - 10" Touch Panel Display System
DDX PRIME

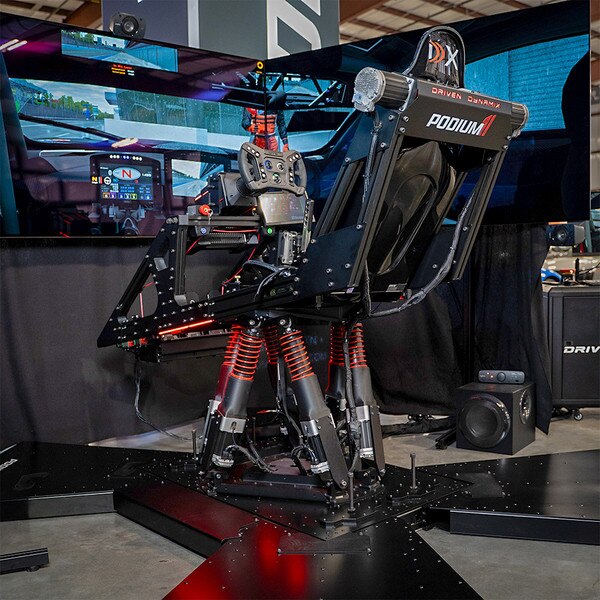

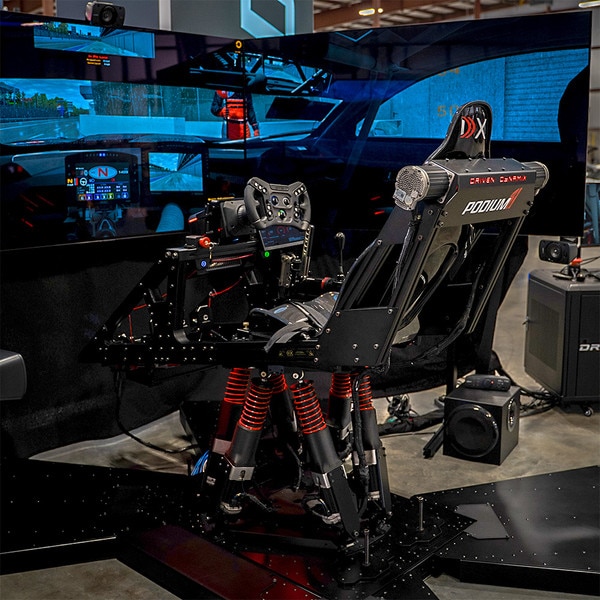

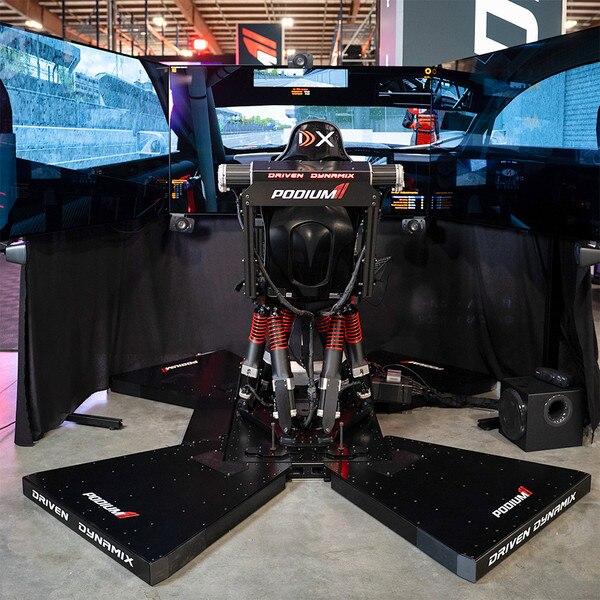

PRO LEVEL MOTION SYSTEM
6 custom parallel actuators offer maximum rigidity and infinite combinations of yaw, pitch, roll, sway, surge, and heave - plus unparalleled frequency response up to 500 Hz.Weight transfer, traction loss, and laser-scanned road vibration - all while on a banked oval at 200mph? No problem.
DDX PRIME

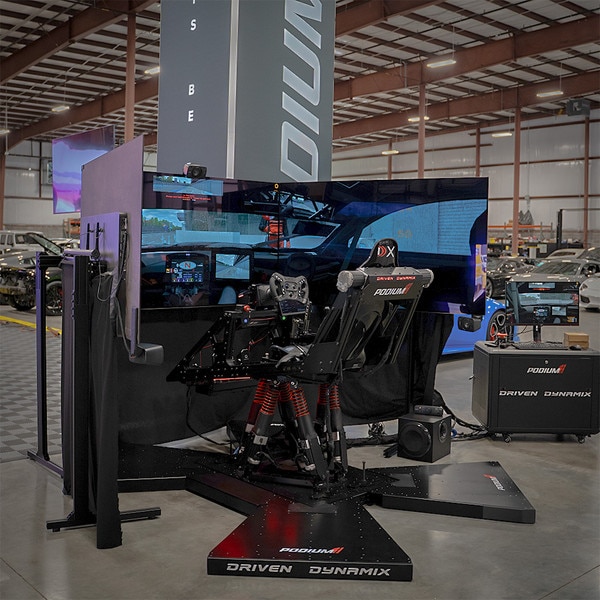

SYSTEM MANAGEMENT STATION
One clean and simple case solution that houses the PC, power management, safety mechanisms controls and more. Case is placed on rollers and can be placed right next to the system or stowed away in another location for a clean look.
Cable will need to be ran between the system and the management station.
Less is more - gone are canned motion cues, tedious car effect profiles, and lag - replaced by the detail and nuance of your simulation, brought to life.
PRO LEVEL MOTION SYSTEM
DDX PRIME
6 custom parallel actuators offer maximum rigidity and infinite combinations of yaw, pitch, roll, sway, surge, and heave - plus unparalleled frequency response up to 500 Hz.Weight transfer, traction loss, and laser-scanned road vibration - all while on a banked oval at 200mph? No problem.
Power consumption:
Motion system: 120V 15A, 100 - 400W typical
Total system power (with PC, monitors, etc.): 120V 15A, 900 - 1400W typical
Dimensions:
Operating footprint (floor footprint and motion envelope): 9.4’ x 8.0’ (2.9m x 2.4m)
Weight (approximate): 1100lb (500kg)
Floor dynamic load (approximate): 1900lb (860kg)
Minimum doorway width for transport / install: 29.5”
G-ACTIVE SEATING
DDX PRIME
Like nothing else, this built into seat belt tensioner mimics G-Forces you wont believe. With up to 180 lbs per foot of force, you feel braking, cornering, shifting and more like never before.
Max sustained braking force: 800N (180 lbf, ~2.5G)
Max sustained cornering force: 400N (90 lbf)

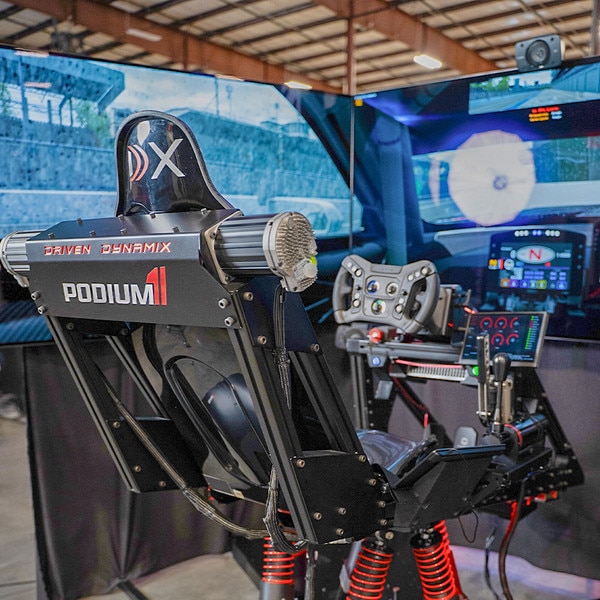

AERO-SURGE WIND SIMULATION
DDX Prime
Real time, full customizable, and significantly stronger than anything on the market, the AeroSurge Wind Kit delivers incredible life like wind. Feel the speed on your face as your putting down lap after lap for hours.
100% output: 24 mph, 78 dBA
50% output: 12 mph, 64 dBA
Acceleration: 0 - 100% output in 400ms
*as measured at typical driver seating distance
CONTROL PANEL
10" Touch Display
While on the move, easily adjust and configure motion strength, wind speed, seat belt tensioner options, view display graphs, telemetry and so more - all from the cockpit while on track.
TILLET
"THE B5 CAR SEAT IS DESIGNED FOR CARS USED ON ROAD & TRACK." Perfect for a Sim the Replicates both.
1:1 mapping (true to life) of simulated vehicle orientation to motion platform pose.
Graphs show vehicle telemetry from sim/game, commanded motion platform pose, and sensor measured motion platform pose. Minimal delay (single-digit milliseconds) and faithful re-creation of the simulated vehicle enable a natural driving feel similar to reality. Weight transfer is accurately reproduced for every class of vehicle automatically, with no canned effects or manual user profile setups.
Asetek Invicta Wheel
Gt PRO V2 Suede
ACTIVE PEDALS
Simucube
Designed to cater to the sim racing enthusiast’s needs. The Simucube ActivePedal allows you to transform your sim racing experience from a passive one to an active one. Adjust the pedal in whatever way you see fit such as pressure, travel distance, and even the pedal curve. Get racing quickly with profiles created by professional motorsports drivers and feel real world car effects such as ABS.
Simucube Active Pedals
Force Feedback In Pedals
Unlimited adjustability ABS feedback G-force effectsRPM feedbackTraction controlSimucube craftmanship
PEDAL SLIDER SYSTEM
DDX Prime
A completely new way of adjusting the pedals to quickly set the position for various drivers and their unique size. Pull the cord and push the pedals into place for quick, easy and seamless adjustment. Completely toolless and done within seconds.
BDH H1SQ SHIFTER
P1 Edition
THE ALL NEW P1 EDITION BDH H1SQ
The next evolution to one of the best shifters in sim racing. The all new H1SQ from BDH. H-pattern to Sequential, its all here in a newly designed enclosure.
HANDBRAKE
Heusinkveld
The Heusinkveld Handbrake is a versatile, pressure sensitive USB simulator handbrake using load cell technology. It has a firm and adjustable progressive feel with up to 22kg of force at the lever (120kg load cell). Complete freedom to create custom output curves with Heusinkveld SmartControl, adjust settings and profiles while driving with SmartControl Live. Adjustable horizontal or vertical lever with fine-tune adjustment. Comes with adapter plate with yaw adjustment for aluminium profiles.
5.1 SURROUND SOUND
Logitech Z906
- 5.1 digital surround sound: Hear every detail in your Dolby Digital and DTS soundtracks the way the studio intended. Sub woofer: 165 Watts
- THX certified home theater speakers: Your assurance of true cinema quality sound.
- Delivers a continuous 500 watts of power, with the ability to deliver a peak of 1,000 watts under certain circumstances: Provides rich audio and thunderous bass that let you truly hear and feel every detail
MOTION SYSTEM SPECIFICATIONS
Motion System Specifications
Motion system maximums:
Sway (X): 740mm (+/- 370mm), 560 mm/s, 100 m/s^2 (10G)
Heave (Y): 200mm (+/- 100mm), 145 mm/s, 25 m/s^2 (2.5G)
Surge (Z): 650mm (+/- 325mm), 610 mm/s, 110 m/s^2 (11G)
Yaw (A): 62 deg (+/- 31 deg), 150 deg/s, 28000 deg/s^2
Pitch (B): 57 deg (+/- 28.5 deg), 40 deg/s, 7000 deg/s^2
Roll (C): 52 deg (+/- 26 deg), 40 deg/s, 7000 deg/s^2
*Single-DoF maximums - travel range is reduced for combined multi-DoF motion.
Velocity is approximate and varies over travel range.
Acceleration is approximate peak, short-duration values (vibrations, impacts) at most aggressive settings.
Motion system responsiveness:
Latency: 3ms
Bandwidth (frequency response): 0 - 500Hz
Command rate: 1000Hz
G-Active Seating:
Max sustained braking force: 800N (180 lbf, ~2.5G)
Max sustained cornering force: 400N (90 lbf)
AeroSurge Wind Simulator:
100% output: 24 mph, 78 dBA
50% output: 12 mph, 64 dBA
Acceleration: 0 - 100% output in 400ms
*as measured at typical driver seating distance
Power consumption:
Motion system: 120V 15A, 100 - 400W typical
Total system power (with PC, monitors, etc.): 120V 15A, 900 - 1400W typical
Dimensions:
Operating footprint (floor footprint and motion envelope): 9.4’ x 8.0’ (2.9m x 2.4m)
Weight (approximate): 1100lb (500kg)
Floor dynamic load (approximate): 1900lb (860kg)
Minimum doorway width for transport / install: 29.5”
